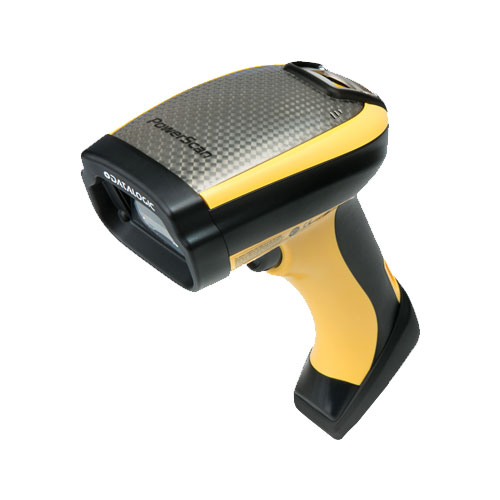

Datalogic PD9530 DPM
- 1D/Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
- 2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Postal Codes; MacroPDF; MicroPDF417; PDF417
- Current Operating(Typical): 350 mA
- Standby/Idle(Typical): 120 mA
- Input Voltage: 5 VDC +/- 10%
- Particulate and Water Sealing: IP65
- Temperature Operating: -20 to 50 °C / -4 to 122 °F
- Interfaces: RS-232/USB/Keyboard Wedge Multi-Interface

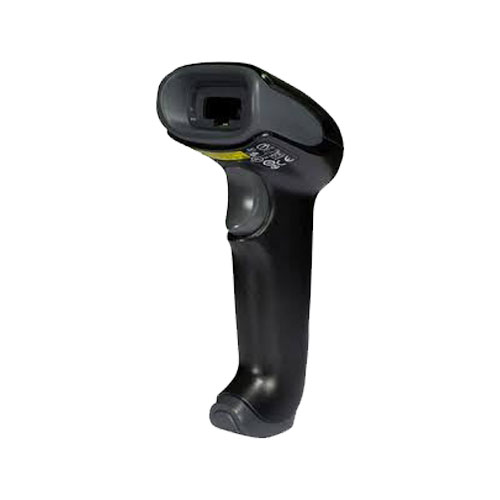

Honeywell 1250g
- Dimensions (LxWxH): 60mm x 168mm x 74mm (2.3in x 6.6in x 2.9in)
- Weight: 133 g (4.7 oz)
- Input Voltage: 5 V ± 5%
- Operating Power: 700 mW; 140 mA (typical) @5V
- Standby Power: 425 mW; 85 mA (typical) @ 5V
- Host System Interfaces: Multi-interface, includes USB (HID Keyboard, Serial, IBM OEM), RS232 (TTL + 5V, 4 signals), Keyboard Wedge, RS-232C (± 12V), IBM RS485 supported via adapter cable
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 5% to 95% relative humidity, non-condensing
- Drop: Designed to withstand 30 drops on concrete from 1.5m (5ft)
- Environmental Sealing: IP40
- Light Levels: 0-75,000 Lux (direct sunlight)
-
Scan Performance
Scan Pattern
Single scan line

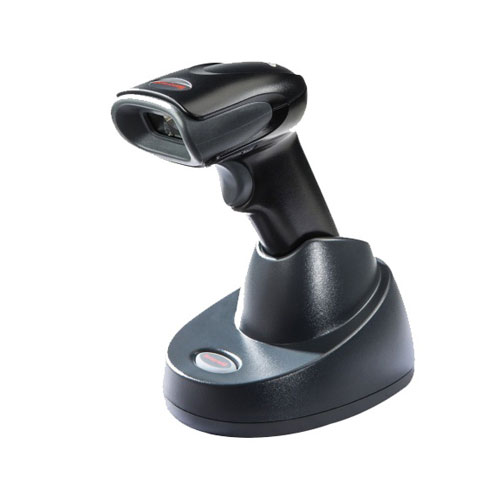

Honeywell 1452G 2D
-
Scanner: 210g (7.4 oz)
Base: 179g (6.3 oz) - Input Voltage 4.0V DC to 5.5V DC
-
Operating Power
Base: Charging 5W (1A @ 5V)
Non-Charging 0.5W (0.1A @ 5V) -
Host System Interfaces
Base: USB, Keyboard Wedge, RS232 TTL, IBM 46xx (RS485) -
Operating Temperature
Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging 0°C to 50°C (32°F to 122°F) -
Storage Temperature
up to 90 days: -20°C to 35°C (-4°F to 95°F)
Base: -40°C to 70°C (-40°F to 158°F) - Humidity: Up to 95% relative humidity, non-condensing
-
Drop
Scanner: Designed to withstand 30 1.5 m (5 ft) drops to concrete)
Base: Designed to withstand 50 1.0 m (3.3 ft) drops to concrete -
Environmental Sealing
Scanner: IP42
Base: IP41 -
Light Levels
Scanner: 0 to 100,000 lux (9,290 foot-candles) - Wireless: Radio/Range 2.4 GHz to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1 Class 2: 10 m (33 ft) line of sight

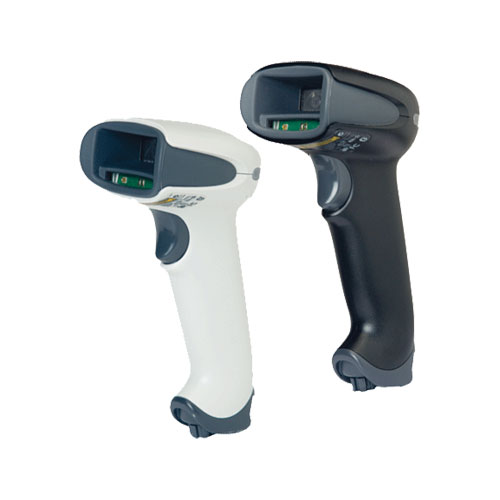

Honeywell 1900
- Dimensions (LxWxH):104 mm x 71 mm x 160 mm (4.1in x 2.8in x 6.3in)
- Weight: 147g (5.2oz)
- Input Voltage: 4 VDC to 5.5 VDC
- OPERATING POWER: 2.3 W (450mA @ 5 VDC)
-
Charging 5W (1A @ 5V)
Non-Charging 0.5 W (0.1A @ 5V) - Standby Power: 0.45W (90mA @ 5VDC)
- Host System Interfaces: USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -40°C to +70°C (-40°F to +158°F)
- Humidity: 0 to 95% relative humidity, non-condensing
- Drop: 1900 - Designed to withstand 50 1.8m (6ft) drops to concrete Ratchet stand: Designed to withstand 50 1.2m (4ft) drops to concrete on each of the faces
- Environmental Sealing: IP41
-
Scan Performance
Scan Pattern
Area Image (838 x 640 pixel array)

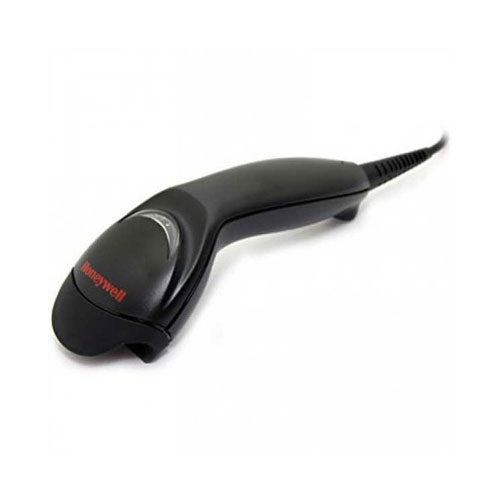

Honeywell MK5145
- Dimensions (LxWxH): 169mm x 63mm x 51mm (6.7in x 2.5in 2.0in)
- Weight: 100g (3.5oz)
- Input Voltage: 5VDC + 0.25V
- Operating Power: 675mW (125mA @ 5V)
- Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 5% to 95% relative humidity, non-condensing
- Drop: Designed to withstand 1.5 m (5 ft) drops
-
Scan Performance
Scan Pattern
Single scan line - Scan Speed: 72 scan lines per second
